ATR Stop Loss with Trade Signal for MT4

ATR-Based Volatility Breakthrough Stop-Loss Strategy

Core Concept:

• ATR is not only used to set the initial stop-loss and take-profit but also to optimize exit timing through critical price breakthrough points.
• If the price breaks through the ATR threshold, it signals a potential continuation of the trend, allowing the position to be extended.
• When the price returns below the ATR mean level, it triggers an exit.

Implementation Approach:

1. Extend Positions on ATR Breakthrough:
   • If the price breaks above the ATR upper channel, maintain or extend the position.
2. Exit on ATR Mean Reversion:
   • Exit the position when the price falls back below the ATR mean level or moves to the opposite side of the channel.

Applicable Scenarios:

1. Trend Markets:
   • This strategy performs well in strong trend conditions, dynamically adjusting exit points to capture larger profits.
2. Range-Bound Markets:
   • In choppy or range-bound markets, frequent exits may occur, which can be optimized with additional filters (e.g., ADX or trend confirmation).

Optimal ATR Take-Profit Strategies:

The most effective take-profit strategies when paired with ATR include:

1. Dynamic Trailing Stop:
   • Adjust the stop-loss level dynamically based on ATR, locking in profits as the price moves favorably.
   • Ensures positions stay open as long as the trend continues.
2. Wave-Termination Signal Exit:
   • Combines ATR with moving averages or other trend indicators to identify the end of a wave or trend.

Optimization Tips:

1. Adjust ATR Multipliers:
   • High Volatility Markets (e.g., Gold): Increase ATR multipliers to allow for larger stop-loss/take-profit ranges.
   • Low Volatility Markets: Decrease ATR multipliers for tighter control.
2. Use Multi-Timeframe Analysis:
   • Confirm trend direction using higher timeframes to filter false signals and enhance strategy robustness.

Wave-Termination Signal Exit with ATR and Moving Averages

Core Idea:

• Use ATR in conjunction with a moving average (e.g., 20-period SMA) to create a dynamic channel:
  • Hold Positions: Continue holding as long as the price stays within the favorable side of the dynamic channel.
  • Exit Signal: Exit when the price reverses and crosses to the opposite side of the channel.

How It Works:

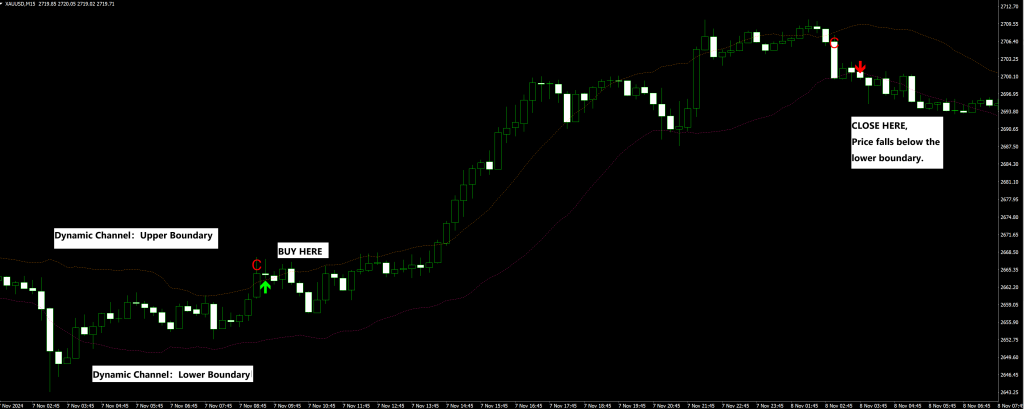

1. Dynamic Channel:
   • Upper Boundary: Moving Average + (ATR × Multiplier).
   • Lower Boundary: Moving Average - (ATR × Multiplier).
2. Buy Orders (Long):
   • Hold Condition: Price stays above the upper boundary.
   • Exit Condition: Price falls below the lower boundary.

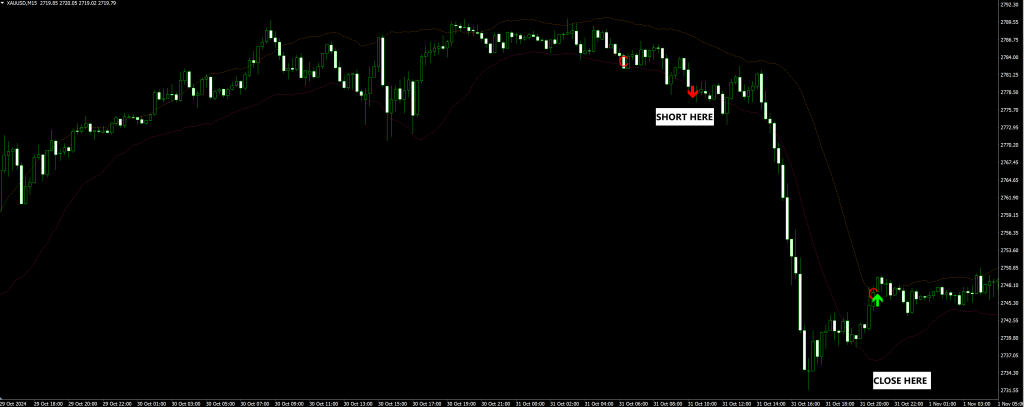

3. Sell Orders (Short):
   • Hold Condition: Price stays below the lower boundary.
   • Exit Condition: Price breaks above the upper boundary.
